LED driver | 24V | 75W | IP20 | Meanwell

24V LED Driver for compact installations

This 24V driver is designed for applications such as LED strips and downlighters. With dimensions of 99x97x30mm, this driver is easy to install in tight spaces. The power supply efficiently converts mains voltage to 24V, maintaining low temperature through air convection in a metal housing. The standby mode consumes only 0.3W, making it perfect for energy-efficient installations.

The driver delivers an output current of 3.2A at a single 24VDC output and accepts an input voltage of 85 to 264VAC. It has a peak input of 300VAC for 5 seconds and meets anti-vibration standards up to 5G, making it suitable for demanding environments. The free air convection ensures optimal temperature regulation.

Key features

• Compact design for flexible installation
• Very low energy consumption in standby
• Suitable for use at high altitudes up to 5000 meters
• With LED indicator for on/off status
• Overload protection for extra safety

Product properties

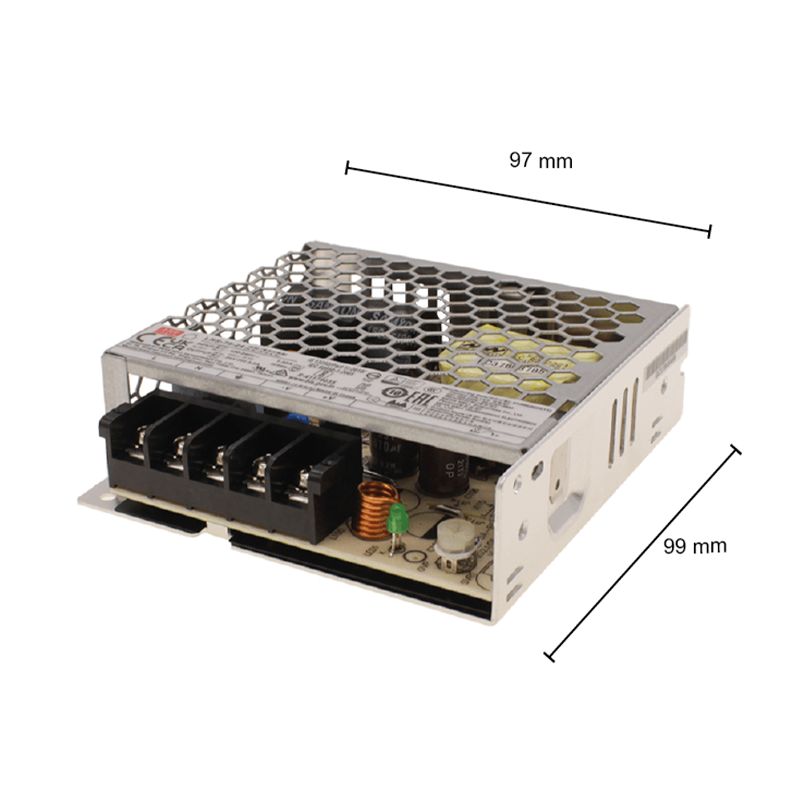

• Dimensions: 99x97x30mm
• Single output: 76.8W AC to DC
• Output current: 3.2A at 24VDC
• Input voltage: 85VAC to 264VAC
• Standby consumption: 0.3W
• Vibration resistance: 5G
• Peak input: 300VAC (duration 5 seconds)
• Operating altitude: up to 5000m
• LED indicator: on/off display
• Wide temperature range: -30°C to 70°C
