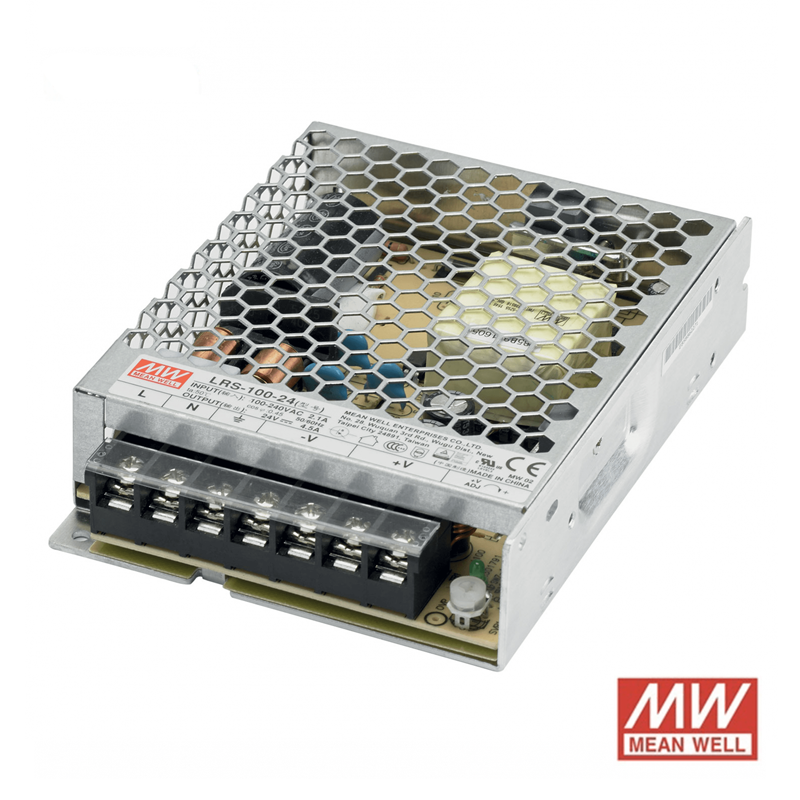

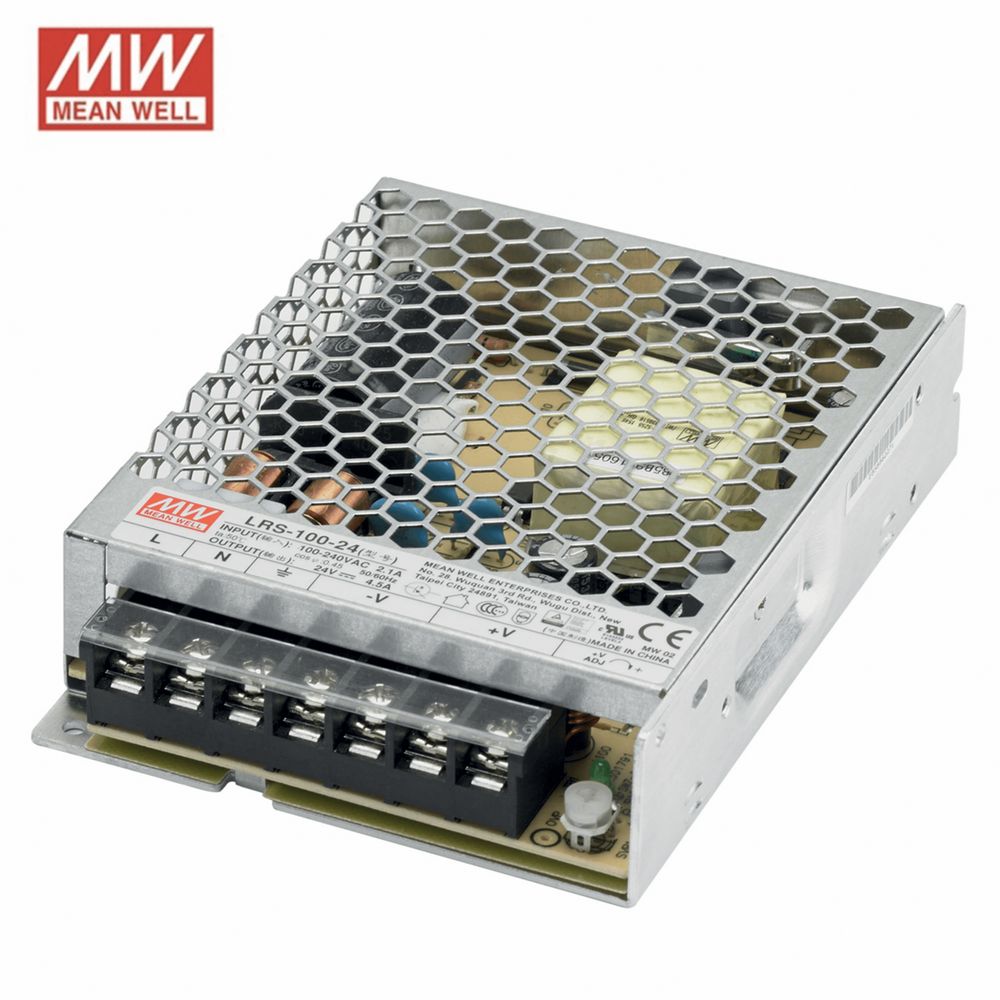

LED driver | 24V | 100W | IP20 | Meanwell

24V LED Driver IP20 for LED-strips and modules

This 24V LED driver is suitable for indoor use in combination with 24-volt LED strips and LED modules. The maximum loadable power is 100 watts.

The driver provides a rated power of 108 W and a wide input voltage range of 85-264 VAC or 120-373 VDC. Equipped with multiple protections, high efficiency of 88%, and a compact profile of only 30 mm high, this is a professional power supply for stable LED installations. Cooling is done through natural convection, and the driver meets strict EMC and safety requirements.

Key features

• High reliability and long lifespan
• Suitable for up to 70 °C ambient temperature
• Automatic recovery from overload or overvoltage
• Pre-tested at 100% full power
• Compact design with low profile

Product specifications

• DC voltage: 24 V
• Rated power: 108 W
• Current range: 0-4.5 A
• Ripple & noise (max.): 150 mVp-p
• Voltage setting: 21.6-28.8 V
• Efficiency: 88%
• Operating temperature: -30 °C to +70 °C

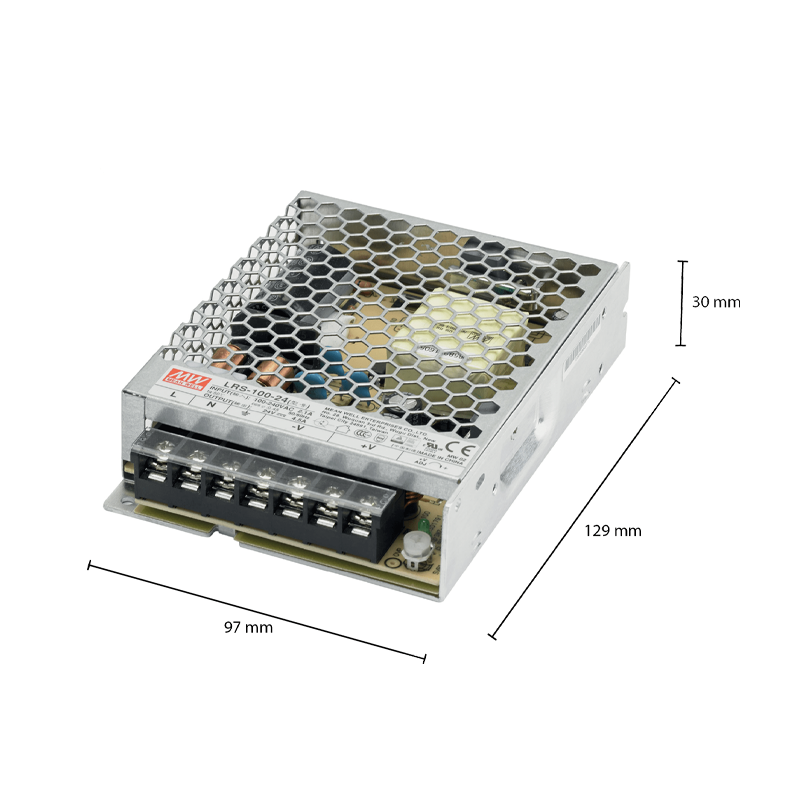

• Dimensions (L x W x H): 129 x 97 x 30 mm
• Weight: 0.34 kg
• Protection against short circuit, overload, and overvoltage
